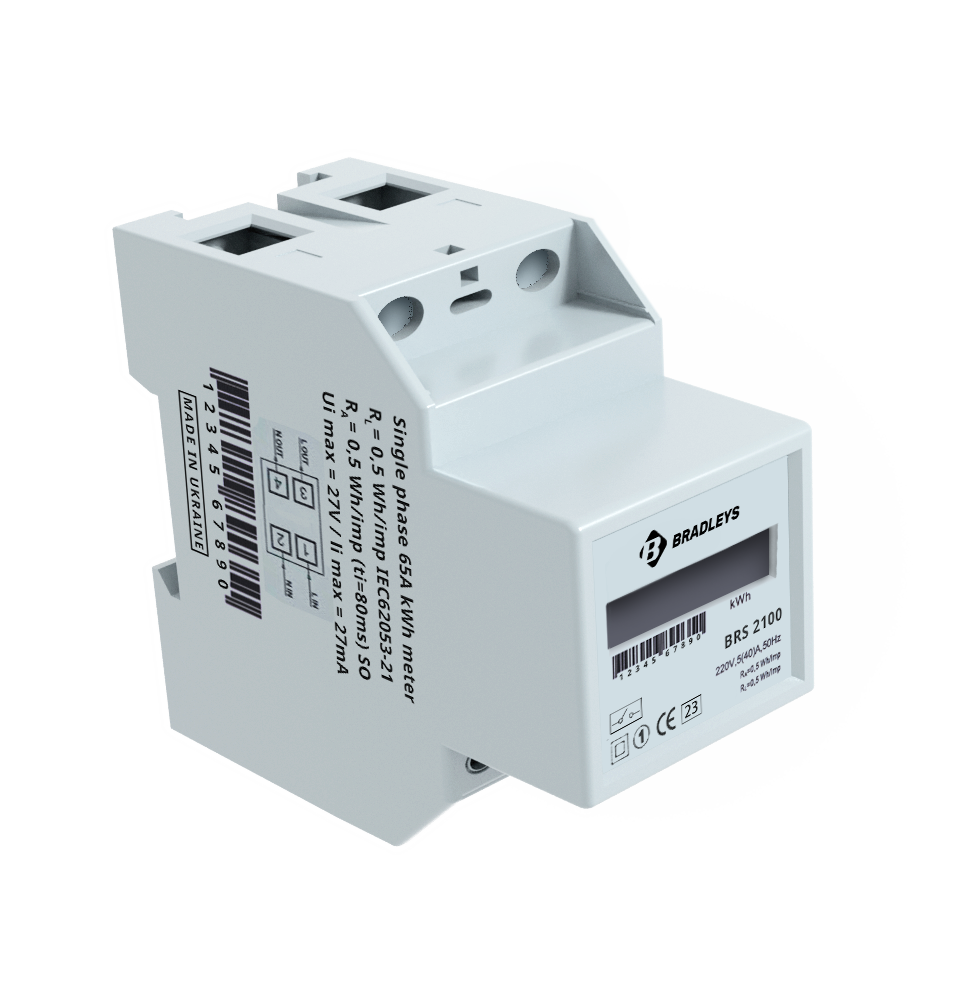

BRS2100 series DIN-rail energy meter supports single phase two wires direct connect 63A load, measuring two-way power, voltage, correct active power, reactive power, apparent power, phase factor and providing various measurement parameters for power monitoring with multi-function, multi-purpose, high stability, and long life.
This series of products with RS485 communication interface supporting Modbus, and DLT645 protocols.
It can read the data remotely, and the design of a large-screen LCD, touch-sensitive key, can easily check the local view and set operation parameters.
The password protection function ensures the data security of the product.
The product is suitable for remote intelligent control of electrical equipment in various environments.
Standard 2 -modules width, rail installation
Multi-function parameter measurement for voltage, current, active and reactive power, apparent power, power factor and phase angle
Support two-ways energy metering, providing monthly electricity consumption statistics for the last 12 months, and daily electricity consumption for the last month
Support multi-tariffs and realize power metering of different tariffs
Support 1 passive pulse output and 1 RS485 with Modbus protocol
Support WIFI from a leading technology company focused on making our lives smarter, offering this through a cloud platform
| Active energy | A+ / A- |
| Reactive energy | R+ / R- |
| Accuracy class | B (1) |
| Rate Voltage (Un) |
230V |
| Maximum Current, Imax | 65A |
| Tariffs | MULTI |
| Approval | MID |
| Extended temp range | – 40C … +70C |
| Nominal frequency | 50 / 60 Hz |
| LCD | 8(6+2) 2 lines |
| Pulse constant | 1000 imp/kWh |
| Voltage shock | 6kV |
| Measure type | Single phase two wires |
| Operating temperature | 40C … +70C- |
| Humidity | Less than 95%, non-condensing |
| Altitude | Up to 2000m |
| IP Protection | IP 54 |
| Voltage shock | 6kV |
| Measure type | Single phase two wires |
| Interfaces standard and protocols | 2-wire RS485, Modbus RTU |
| WIFI | TUYA platform |
